Manifold Valves Manufacturers, Suppliers, Stockist – 100% Leak Proof Manifold Valves, 2-Way Manifold Valves, 3-Way Manifold Valves, 5-Way Manifold Valves
| Stainless Steel Manifold Valves | Inconel Alloy 600/625 Manifold Valves |
| Monel Alloy 400 Manifold Valves | Duplex & Super Duplex Manifold Valves |
| Incoloy Alloy 800/825 Manifold Valves | Hastelloy Alloy C276 Manifold Valves |
- We are manufacturers of all types of manifold valves with various types of end connections and patterns. Manifold valves are made from a variety of materials. Our manufacturing range for manifold valves include valves produced from brass, copper, stainless steel 304/304L, 316L, Duplex, Titanium, Alloy 600, Alloy 400, Alloy 625, Alloy 825, and Alloy C276. Fittings, valves, and tubing are the key components of an instrumentation system.
- We produce 2 way, 3 way and 5 way manifold valves by following a stringent quality control program and standards which assure the highest quality available in the industry. The 2-way manifold valves are designed for static pressure and liquid level applications, while the 3-way and 5-way manifold valves are designed for differential pressure applications. These manifolds are available in traditional and compact body designs. 3-Way manifold valves are the most commonly used type of manifold valve.
- Coming from a specialized manufacturer, our stainless steel manifold valves and special alloy manifold valves are capable of withstanding high pressures and temperatures. Metallica is a global industry leading provider of tubes, valves and tube fittings and have obtained ASME Quality and ISO 9001:2015 Certifications. Our complete product range of instrumentation valves and tube fittings include Pressure Gauge, Snuubers, Gauge Cock Gate, Globe, Check, Butterfly, Ball Valves, Diaphragm Valve, Needle Valves, Syphon ( Q Type, U Type, O Type) and Pipe Fittings.
Manifold Valves Specification & Production Range
| Product | Manifold Valves |
| Design | 2-Way, 3-Way, 5-Way |
| Raw Materials | Bar Stock |
| Grade | AISI 304/304L, AISI 316L, Duplex, Super Duplex, Alloy 600, Alloy 400, Alloy 625, Alloy C276, Brass, Copper |
| Size | 1/4″ to 2″ (6mm to 50mm OD) |
| Pressure | up to 12,100 psig (834 bar) |
| Temperature | -425 to 1200°F (-253 to 648°C) |
| Threads | DIN, BSP (BSPT, BSPP) and NPT |
| Process | Forging, Machining, Testing |
| Mounting Options |
|
| Equivalent | Can be Interchanged with Swagelok® and Parker Fittings |
- Email Us on info@metallicametals.com for best prices on manifold valves.
- Our Key Products – SS 304 Manifold Valves, SS 316 Manifold Valves, SS 321H Manifold Valves, Duplex 2205 Manifold Valves, Hastelloy C276 Manifold Valves, Monel 400 Manifold Valves, Incoloy 800HT Manifold Valves, Incoloy 825 Manifold Valves, Inconel 600/625 Manifold Valves, Duplex F60 Manifold Valves, Super Duplex Manifold Valves, F53/F55 Manifold Valves, Titanium Manifold Valves
Types of 2-Way Manifold Valves
A 2-way valve manifold is used for pressure transmitter. The typical 2-way valve manifold consists of 1 block valve and 1 drain or test valve. If we want to calibrate the pressure transmitter, we just need simply close the block valve and open the drain valve. Then connect the drain valve connection to the pressure generator to give some test pressure.

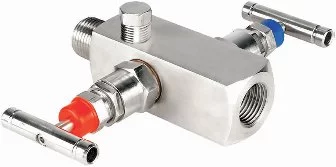

Manifold – R Type – 2 Way-01
Manifold – R Type – 2 Way-02
Manifold – R Type – 2 Way-03
Manifold – R Type – 2 Way-04
Manifold – R Type – 2 Way-05
Manifold – R Type – 2 Way-06 (Direct Mounting)
Manifold – T Type – 2 Way (Direct Mounting)
Types of 3-Way Manifold Valves
A 3-Way Manifold Valve is used for differential pressure transmitter. The typical 3-way valve manifold consists of 2 block valve and 1 equalizer valve. If we want to check the zero of the differential pressure transmitter, we just need to close the block valve and open the equalizing valve. This 3-valve manifold is rarely used in oil & gas industries especially in the offshore platform due to the un-available of test connection.
Manifold – R – 3 Way-01
Manifold – R – 3 Way-02 (Direct Mounting)
Manifold – T – 3 Way (Direct Mounting)
Manifold – H – 3 Way (Direct Mounting)
Types of 5-Way Manifold Valves
Like 3-way valve manifold, 5-way valve manifold is also used for differential pressure transmitter. The typical 5-way valve manifold consist of 2 block valve, 1 equalizer valve, and 2 vent or test valve. If we want to check the zero of the transmitter, we just need to close the block valve and open the equalizing valve. If we want to calibrate the transmitter for 3 or 5 point calibration, then after the pressure is equalized we just need to connect the test valve to a pressure generator. This 5-way valve manifold is the most common valve manifold for differential pressure transmitter.
Manifold – R – 5 Way-01
Manifold – R – 5 Way-02 (Direct Mounting)
Manifold – R – 5 Way-03 (Direct Mounting)
Manifold – T – 5 Way (Direct Mounting)
Manifold – H – 5 Way (Direct Mounting)
Testing & Inspection of Manifold Valves
Testing (Destructive, Non Destructive)
| Positive Material Identification – PMI Testing | Hydrostatic Test |
| Chemical Analysis – Spectro Analysis | Hydrogen-Induced Cracking (HIC) Test |
| Mechanical Testing Such as Tensile, Elongation, Reduction of Area | Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177 |
| Micro Test | Radiography Test |
| Macro Test | Dye Penetrant Test (DP Test) |
| Hardness Test | Ultra Sonic Test (UT) |
| Pitting Resistance Test | Eddy Current Testing |
| Intergranular Corrosion (IGC) Test | Impact Test |
| Flaring Test | Bend Test |
| Flattening Test |
Inspection
- Our internal inspection reports would be provided for all the goods before shipment.
- Buyers or their associates are most welcome to visit us for personal inspect
- We regularly have inspections ongoing at our premises from internationally acclaimed Inspection Agencies such as TUV, BVIS, SGS, Llyods, DNV etc.
Prices for Manifold Valves
Prices for manifold valves materials are directly co related to prices of the raw materials such as iron ore, metal scrap, chromium, nickel and various other alloying elements. The production cost of heat resistant stainless steel and nickel alloy manifold valves is high as they contain high amount of nickel and chromium. Meanwhile, mild steel material is among the lowest cost steel available, followed by carbon steel, 400 series stainless steels, aluminium, alloy steel, and 300 series stainless steel. Special alloys such as titanium, Inconel, Monel and Hastelloy cost very high as the nickel, chromium and moly content is very high.
For special and discounted prices for various types of manifold valve fittings products, please feel free to contact us through email, phone or whatsapp.
We are also regularly publishing our price list for various steel products on our blog.
Documents Provided – Domestic Sales or Export of Manifold Valve
| Certificate of Origin | Raw Material Test Reports |
| Commercial Invoice | Heat Treatment Charts |
| Packing List | Quality Assurance Plan (QAP) |
| Fumigation Certificates | NABL approved Laboratory Test Reports |
| Letter of Guarantee | Material Test Certificates |
| ROHS Certificate | Certificate of Compliance/Conformity |
Price Terms for Manifold Valves
We can offer any of the following price basis depending on your requirement:
- Ex-works
- FOR Site in India
- FOB Nhava Sheva
- CFR, CIF, CPT your destination port
- Door to Door Delivery Duty Paid as well as Duty Unpaid
Delivery Time of Manifold Valves
- If the items are available in stock, we take 2 days from the date of receipt of advance payment to clear the shipment and send it to port.
- And in-case the items are not available in stock, the time taken for manufacturing depends on the size, quantity and grade.
- However we can claim the fact that we can compete with anyone in India on Delivery time and most of the time our production time is the least.
- We have tied up with strong logistic partners in India which can undertake any type of shipping activities and make sure that there is no delay in shipment.
Marking & Packing of Manifold Valves
- All our products will have complete marking details which are co-related to the test certificates we supply.
- In case of orders for cut piece of Pipes, Sheets or Round Bars, the marking is transferred from the product from which it is cut. In such cases we provide Letter confirming the marking transfer and picture of the product from which it is cut.
- All goods are packed in wooden cases or pallets.
