ASME B16.9 Pipe Reducer Manufacturers, Stockist, Suppliers – Seamless Reducer, Welded Reducer, Large Fabricated Reducer, Concentric & Eccentric Reducers
- We are a specialist manufacturer of concentric and eccentric reducer in size range of 1/2″ to 48″ in accordance with ASME B16.9. We also produce custom size reducers as per design or drawing from our customers. A pipe reducer can be manufactured in seamless, welded or fabricated form. While seamless reducers can be produced upto size of 24″, we can produce welded and fabricated reducers upto a size range of 48″ or even higher in some cases.
- Concentric Reducers are used to join pipe or tube sections on the same axis. They provide an in-line conical transition between pressurized pipes of differing diameters. A pipe reducer can be a single diameter change or a multiple diameter change. The pipes cannot recognize what the outside configuration of the pipe reducer looks like. The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1″ pipe transitions into a 3/4″ pipe and the top or bottom of the pipe doesn’t need to remain level. Concentric reducer is one of the most commonly used type of buttweld pipe fittings, produce as per ASME B16.9 dimensional specification.
- An eccentric pipe reducer fitting is manufactured with the smaller outlet off center to the larger end, which allows it to align with only one side of the inlet. The reducer must be installed with straight side up so that it can prevent trapping air at the pump suction. The eccentric pipe reducers allow simple connection of different sized pipes. They are used where the diameter of the pipe on the upstream side of the fitting is larger than the downstream side. We offer the most competitive prices for various pipe fittings.
Pipe Reducer Production Range & Product Specifications
| Product | Pipe Reducer (Concentric & Eccentric) |
| Type | Seamless, Pipe Welded, Fabricated |
| Size | Seamless: 1/2″ – 24″; welded: 8″ – 100″ |
| Thickness | 1mm to 25mm |
| Standards | ASME B16.9, DIN, ISO, ASTM |
| Surface Finish | Annealed & Pickled, Transparent oil, Black Oil or Hot Dip Galvanized |
| Test Certificate | EN 10204 3.1 |
- Please contact us for any further question or inquiry regarding concentric or eccentric pipe reducers. We will promptly reply to you and offer you a reasonable price. We can manufacture pipe reducer in stainless steel, alloy steel and carbon steel. We provide these pipe fittings at market leading rates and we also offer price guarantee for all the products we offer to sale.
Material Grades for Producing Concentric & Eccentric Pipe Reducer
| Stainless Steel | 304, 304L, 306, 316L, 304H, 309S, 309H, 310S, 310H, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Duplex & Super Duplex Steel | UNS S31803, UNS S32205, UNS S32750, UNS S32760 |
| Carbon Steel | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Alloy Steel | ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Copper Alloy Steel | ASTM/ASME SB 111 UNS NO. C10100, C10200, C10300, C10800, C12000, C12200, C70600, C71500, ASTM / ASME SB 466 UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU-NI- 70/30) |
| Nickel Alloy Steel | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
Use of Pipe Reducers
- Pipe reducers will transition gracefully between the piping and the pump.
- The reducers help in transporting slurries or abrasive liquids.
- They are useful in services where cavitation is present.
- When transporting between flanges or pipes of different ratings and wear protection is necessary, concentric reducers are ideal.
- Reducers are used in discharge of the pump.
Applications of Reducer
- Petrochemical industry
- Pharmaceutical industry
- Food industry
- Aviation and aerospace industry
- Architectural decoration industry
- Oil and Gas Pipeline industry
Dimensions of ASME B16.9 Reducers

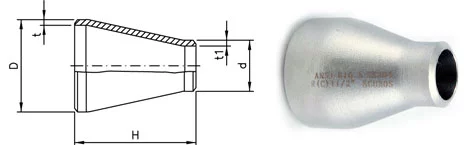

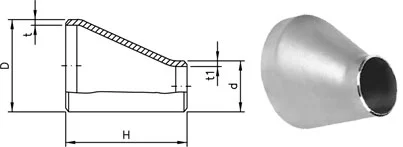

- The technical drawing of ASME B16.9 reducers, concentric & eccentric.
| REDUCERS | ||||
| inches | mm | D | d | H |
| 3/4 x 3/4 | 20 x 15 | 26.67 | 21.34 | 38.1 |
| 3/4 x 3/8 | 20 x 10 | 26.67 | 17.14 | 38.1 |
| 1 x 3/4 | 25 x 20 | 33.4 | 26.67 | 50.8 |
| 1 x 1/2 | 25 x 15 | 33.4 | 21.34 | 50.8 |
| 1 1/4 x 1 | 32 x 25 | 42.16 | 33.4 | 50.8 |
| 1 1/4 x 3/4 | 32 x 20 | 42.16 | 26.67 | 50.8 |
| 1 1/4 x 1/2 | 32 x 15 | 42.16 | 21.34 | 50.8 |
| 1 1/2 x 1 1/4 | 40 x 32 | 48.26 | 42.16 | 63.5 |
| 1 1/2 x 1 | 40 x 25 | 48.26 | 33.4 | 63.5 |
| 1 1/2 x 3/4 | 40 x 20 | 48.26 | 26.67 | 63.5 |
| 1 1/2 x 1/2 | 40 x 15 | 48.26 | 21.34 | 63.5 |
| 2 x 1 1/2 | 50 x 40 | 60.32 | 48.26 | 76.2 |
| 2 x 1 1/4 | 50 x 32 | 60.32 | 42.16 | 76.2 |
| 2 x 1 | 50 x 25 | 60.32 | 33.4 | 76.2 |
| 2 x 3/4 | 50 x 20 | 60.32 | 26.67 | 76.2 |
| 2 1/2 x 2 | 65 x 50 | 73.02 | 60.32 | 88.9 |
| 2 1/2 x 1 1/2 | 65 x 40 | 73.02 | 48.26 | 88.9 |
| 2 1/2 x 1 1/4 | 65 x 32 | 73.02 | 42.16 | 88.9 |
| 2 1/2 x1 | 65 x 25 | 73.02 | 33.4 | 88.9 |
| 3 x 2 1/2 | 80 x 65 | 88.9 | 73.02 | 88.9 |
| 3 x 2 | 80 x 50 | 88.9 | 60.32 | 88.9 |
| 3 x 1 1/2 | 80 x 40 | 88.9 | 48.26 | 88.9 |
| 3 x 1 1/4 | 80 x 32 | 88.9 | 42.16 | 88.9 |
| 3 1/2 x 3 | 90 x 80 | 101.6 | 88.9 | 101.6 |
| 3 1/2 x 2 1/2 | 90 x 65 | 101.6 | 73.02 | 101.6 |
| 3 1/2 x 2 | 90 x 50 | 101.6 | 60.32 | 101.6 |
| 3 1/2 x 1 1/2 | 90 x 40 | 101.6 | 48.26 | 101.6 |
| 3 1/2 x 1 1/4 | 90 x 32 | 101.6 | 42.16 | 101.6 |
| 4 x 3 1/2 | 100 x 90 | 114.3 | 73.02 | 101.6 |
| 4 x 3 | 100 x 80 | 114.3 | 88.9 | 101.6 |
| 4 x 2 1/2 | 100 x 65 | 114.3 | 73.02 | 101.6 |
| 4 x 2 | 100 x 50 | 114.3 | 60.32 | 101.6 |
| 4 x 1 1/2 | 100 x 40 | 114.3 | 48.26 | 101.6 |
| 5 x 4 | 125 x 100 | 141.3 | 114.3 | 127 |
| 5 x 3 1/2 | 125 x 90 | 141.3 | 101.6 | 127 |
| 5 x 3 | 125 x 80 | 141.3 | 88.9 | 127 |
| 5 x 2 1/2 | 125 x 65 | 141.3 | 73.02 | 127 |
| 5 x 2 | 125 x 50 | 141.3 | 60.32 | 127 |
| 6 x 5 | 150 x 125 | 168.27 | 141.3 | 139.7 |
| 6 x 4 | 150 x 100 | 168.27 | 114.3 | 139.7 |
| 6 x 1/2 | 150 x 90 | 168.27 | 101.6 | 139.7 |
| 6 x 3 | 150 x 80 | 168.27 | 88.9 | 139.7 |
| 6 x 1/2 | 150 x 65 | 168.27 | 73.02 | 139.7 |
| 8 x 6 | 200 x 150 | 219.07 | 168.27 | 152.4 |
| 8 x 5 | 200 x 125 | 219.07 | 141.3 | 152.4 |
| 8 x 4 | 200 x 100 | 219.07 | 114.3 | 152.4 |
| 8 x 3 1/2 | 200 x 90 | 219.07 | 101.6 | 152.4 |
| 10 x 8 | 250 x 200 | 273.05 | 219.07 | 177.8 |
| 10 x 6 | 250 x 150 | 273.05 | 168.27 | 177.8 |
| 10 x 5 | 250 x 125 | 273.05 | 141.3 | 177.8 |
| 10 x 4 | 250 x 100 | 273.05 | 114.3 | 177.8 |
| 12 x 10 | 300 x 250 | 323.85 | 273.05 | 203.2 |
| 12 x 8 | 300 x 200 | 323.85 | 219.07 | 203.2 |
| 12 x 6 | 300 x 150 | 323.85 | 168.27 | 203.2 |
| 12 x 5 | 300 x 125 | 323.85 | 141.3 | 203.2 |
| 14 x 12 | 350 x 300 | 355.6 | 323.85 | 330.2 |
| 14 x 10 | 350 x 250 | 355.6 | 273.05 | 330.2 |
| 14 x 8 | 350 x 200 | 355.6 | 219.07 | 330.2 |
| 14 x 6 | 350 x 150 | 355.6 | 168.27 | 330.2 |
| 16 x 14 | 400 x 350 | 406.4 | 355.6 | 355.6 |
| 16 x 12 | 400 x 300 | 406.4 | 323.85 | 355.6 |
| 16 x 10 | 400 x 250 | 406.4 | 273.05 | 355.6 |
| 16 x 8 | 400 x 200 | 406.4 | 219.07 | 355.6 |
| 18 x 16 | 450 x 400 | 457.2 | 406.4 | 381 |
| 18 x 14 | 450 x 350 | 457.2 | 355.6 | 381 |
| 18 x 12 | 450 x 300 | 457.2 | 323.85 | 381 |
| 18 x 10 | 450 x 250 | 457.2 | 273.05 | 381 |
| 20 x 18 | 500 x 450 | 508 | 457.2 | 508 |
| 20 x 16 | 500 x 400 | 508 | 406.4 | 508 |
| 20 x 14 | 500 x 350 | 508 | 355.6 | 508 |
| 20 x 12 | 500 x 300 | 508 | 323.85 | 508 |
| 22 x 20 | 550 x 500 | 558.8 | 508 | 508 |
| 22 x 18 | 550 x 450 | 558.8 | 457.2 | 508 |
| 22 x 16 | 550 x 400 | 558.8 | 406.4 | 508 |
| 22 x 14 | 550 x 350 | 558.8 | 355.6 | 508 |
| 24 x 22 | 600 x 550 | 609.6 | 558.8 | 508 |
| 24 x 20 | 600 x 500 | 609.6 | 508 | 508 |
| 24 x 18 | 600 x 450 | 609.6 | 457.2 | 508 |
| 24 x 16 | 600 x 400 | 609.6 | 406.4 | 508 |
| Dimension in mm. | ||||
Dimension of Large Size Concentric Reducers
| Nominal Diameter | Outside Diameter (mm) | End to End (mm) | ||
| D1*D2 | ||||
| DN | NPS | Series A | Series B | H |
| 20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 |
| 20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 |
| 25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 |
| 25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 |
| 32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 |
| 32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 |
| 32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 |
| 40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 |
| 40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 |
| 40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 |
| 40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 |
| 50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 |
| 50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 |
| 50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 |
| 50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 |
| 65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 |
| 65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 |
| 65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 |
| 65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 |
| 80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 |
| 80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 |
| 80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 |
| 80×32 | 3×1.1/4 | 88.9×42.4 | 89×38 | 89 |
| 90×80 | 3.1/2×3 | 101.6×88.9 | – | 102 |
| 90×65 | 3.1/2×2.1/2 | 101.6×73.0 | – | 102 |
| 90×50 | 3.1/2×2 | 101.6×60.3 | – | 102 |
| 90×40 | 3.1/2×1.1/2 | 101.6×48.3 | – | 102 |
| 90×32 | 3.1/2×1.1/4 | 101.6×42.4 | – | 102 |
| 100×90 | 4×3.1/2 | 114.3×101.6 | – | 102 |
| 100×80 | 4×3 | 114.3×88.9 | 108×89 | 102 |
| 100×65 | 4×2.1/2 | 114.3×73.0 | 108×76 | 102 |
| 100×50 | 4×2 | 114.3×60.3 | 108×57 | 102 |
| 100×40 | 4×1.1/2 | 114.3×48.3 | 108×45 | 102 |
| 125×100 | 5×4 | 141.3×114.3 | 133×108 | 127 |
| 125×90 | 5×3.1/2 | 141.3×101.6 | – | 127 |
| 125×80 | 5×3 | 141.3×88.9 | 133×89 | 127 |
| 125×65 | 5×2.1/2 | 141.3×73.0 | 133×76 | 127 |
| 125×50 | 5×2 | 141.3×60.3 | 133×57 | 127 |
| 150×125 | 6×5 | 168.3×141.3 | 159×133 | 140 |
| 150×100 | 6×5 | 168.3×114.3 | 159×108 | 140 |
| 150×90 | 6×3.1/2 | 168.3×101.6 | – | 140 |
| 150×80 | 6×3 | 168.3×88.9 | 159×89 | 140 |
| 150×65 | 6×2.1/2 | 168.3×73.0 | 159×76 | 140 |
| 200×150 | 8×6 | 219.1×168.3 | 219×159 | 152 |
| 200×125 | 8×5 | 219.1×141.3 | 219×133 | 152 |
| 200×100 | 8×4 | 219.1×114.3 | 219×108 | 152 |
| 200×90 | 8×3.1/2 | 219.1×101.6 | – | 152 |
| 250×200 | 10×8 | 273.0×219.1 | 273×219 | 178 |
| 250×150 | 10×6 | 273.0×168.3 | 273×159 | 178 |
| 250×125 | 10×5 | 273.0×141.3 | 273×133 | 178 |
| 250×100 | 10×4 | 273.0×114.3 | 273×108 | 178 |
| 300×250 | 12×10 | 323.9×273.1 | 325×273 | 203 |
| 300×200 | 12×8 | 323.9×219.1 | 325×219 | 203 |
| 300×150 | 12×6 | 323.9×168.3 | 325×159 | 203 |
| 300×125 | 12×5 | 323.9×141.3 | 325×133 | 203 |
| 350×300 | 14×12 | 355.6×323.9 | 377×325 | 330 |
| 350×250 | 14×10 | 355.6×273.0 | 377×273 | 330 |
| 350×200 | 14×8 | 355.6×219.1 | 377×219 | 330 |
| 350×150 | 14×6 | 355.6×168.3 | 377×159 | 330 |
| 400×350 | 16×14 | 406.4×355.6 | 426×377 | 356 |
| 400×300 | 16×12 | 406.4×323.9 | 426×325 | 356 |
| 400×250 | 16×10 | 406.4×273.0 | 426×273 | 356 |
| 400×200 | 16×8 | 406.4×219.1 | 426×219 | 356 |
| 450×400 | 18×16 | 457×406.4 | 478×426 | 381 |
| 450×350 | 18×14 | 457×355.6 | 478×377 | 381 |
| 450×300 | 18×12 | 457×323.9 | 478×325 | 381 |
| 450×250 | 18×10 | 457×273.0 | 478×273 | 381 |
| 500×450 | 20×18 | 508×457 | 529×478 | 508 |
| 500×400 | 20×16 | 508×406.4 | 529×426 | 508 |
| 500×350 | 20×14 | 508×355.6 | 529×377 | 508 |
| 500×300 | 20×12 | 508×323.9 | 529×325 | 508 |
| 550×500 | 22×20 | 559×508 | – | 508 |
| 550×450 | 22×18 | 559×457 | – | 508 |
| 550×400 | 22×16 | 559×406.4 | – | 508 |
| 550×350 | 22×14 | 559×355.6 | – | 508 |
| 600×550 | 24×22 | 610×559 | – | 508 |
| 600×500 | 24×20 | 610×508 | 630×529 | 508 |
| 600×450 | 24×18 | 610×457 | 630×478 | 508 |
| 600×400 | 24×22 | 610×406.4 | 630×426 | 508 |
| 650×600 | 26×24 | 660×610 | – | 610 |
| 650×550 | 26×22 | 660×559 | – | 610 |
| 650×500 | 26×20 | 660×508 | – | 610 |
| 650×450 | 26×18 | 660×457 | – | 610 |
| 700×650 | 28×26 | 711×660 | – | 610 |
| 700×600 | 28×24 | 711×610 | 720×630 | 610 |
| 700×550 | 28×22 | 711×559 | – | 610 |
| 700×500 | 28×20 | 711×508 | 720×530 | 610 |
| 750×700 | 30×28 | 762×711 | – | 610 |
| 750×650 | 30×26 | 762×660 | – | 610 |
| 750×600 | 30×24 | 762×610 | – | 610 |
| 750×550 | 30×22 | 762×559 | – | 610 |
| 800×750 | 32×30 | 813×762 | – | 610 |
| 800×700 | 32×28 | 813×711 | 820×720 | 610 |
| 800×650 | 32×26 | 813×660 | – | 610 |
| 800×600 | 32×24 | 813×610 | 820×630 | 610 |
| 850×800 | 34×32 | 864×813 | – | 610 |
| 850×750 | 34×30 | 864×762 | – | 610 |
| 850×700 | 34×28 | 864×711 | – | 610 |
| 850×650 | 34×26 | 864×660 | – | 610 |
| 900×850 | 36×34 | 914×864 | – | 610 |
| 900×800 | 36×32 | 914×813 | 920×820 | 610 |
| 900×750 | 36×30 | 914×762 | – | 610 |
| 900×700 | 36×28 | 914×711 | 920×720 | 610 |
| 950×900 | 38×36 | 965×914 | – | 610 |
| 950×850 | 38×34 | 965×864 | – | 610 |
| 950×800 | 38×32 | 965×813 | – | 610 |
| 950×750 | 38×30 | 965×762 | – | 610 |
| 1000×950 | 40×38 | 1016×965 | – | 610 |
| 1000×900 | 40×36 | 1016×914 | 1020×920 | 610 |
| 1000×850 | 40×34 | 1016×864 | – | 610 |
| 1000×800 | 40×32 | 1016×813 | 1020×820 | 610 |
| 1050×1000 | 42×40 | 1067×1016 | – | 610 |
| 1050×950 | 42×38 | 1067×965 | – | 610 |
| 1050×900 | 42×36 | 1067×914 | – | 610 |
| 1050×850 | 42×34 | 1067×864 | – | 610 |
| 1100×1050 | 44×42 | 1118×1067 | – | 610 |
| 1100×1000 | 44×40 | 1118×1016 | 1120×1020 | 610 |
| 1100×950 | 44×38 | 1118×965 | – | 610 |
| 1100×900 | 44×36 | 1118×914 | 1220×920 | 610 |
| 1150×1100 | 46×44 | 1168×1118 | – | 711 |
| 1150×1050 | 46×42 | 1168×1067 | – | 711 |
| 1150×1000 | 46×40 | 1168×1016 | – | 711 |
| 1150×950 | 46×38 | 1168×965 | – | 711 |
| 1200×1150 | 48×46 | 1220×1168 | – | 711 |
| 1200×1100 | 48×44 | 1220×1118 | 1220×1120 | 711 |
| 1200×1050 | 48×42 | 1220×1067 | – | 711 |
| 1200×1000 | 48×40 | 1220×1016 | 1220×1020 | 711 |
